BILGE-B-DRY Dual Pump 12vdc [BBD-2025-122]

BILGE‑B‑DRY Dual Pump 12VDC — Smart Dry Bilge System: The world’s only smart‑device‑enabled dry bilge system with both wired and wireless water‑sensor activation. Traditional bilge pumps leave behind the last few inches of water—BILGE‑B‑DRY removes it, helping eliminate odors, reduce mold, prevent corrosion, and protect wiring and mechanical components.

NEW FOR 2026 — Smarter Control, More Insight

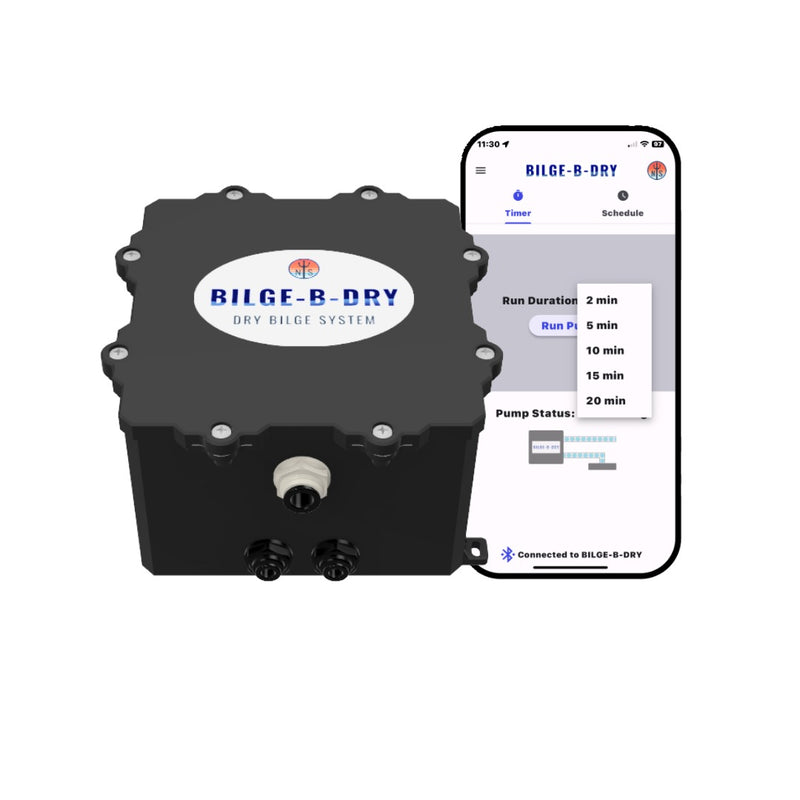

The updated BILGE‑B‑DRY Mobile App gives you full visibility and customization from your smart device:

• Multi‑device access
• Event logs & charts
• Water sensor management
• Cloud backup & sync
• Warranty registration
• Device ID backup
• In‑depth help features

Built for Boats That Need Serious Water Removal
The Dual Pump system delivers efficient, reliable removal of leftover water after:

• Heavy washdowns
• Seasonal rain
• Sea spray and rough‑water days
• Untreated leaks
• Water collecting in stepped hulls or tight compartments

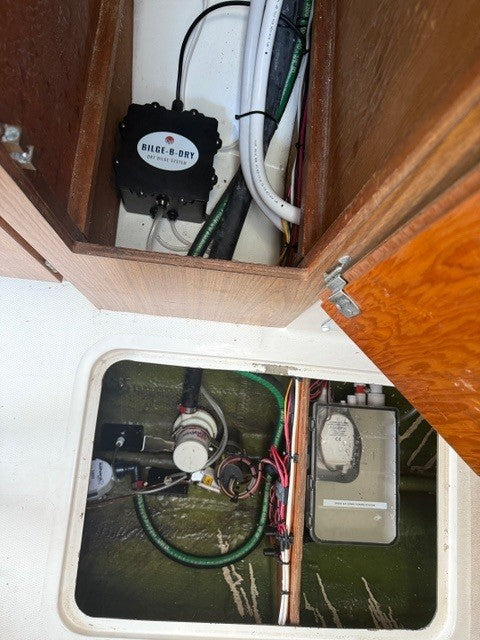

Compact, Rugged, and Ready for Demanding Bilges

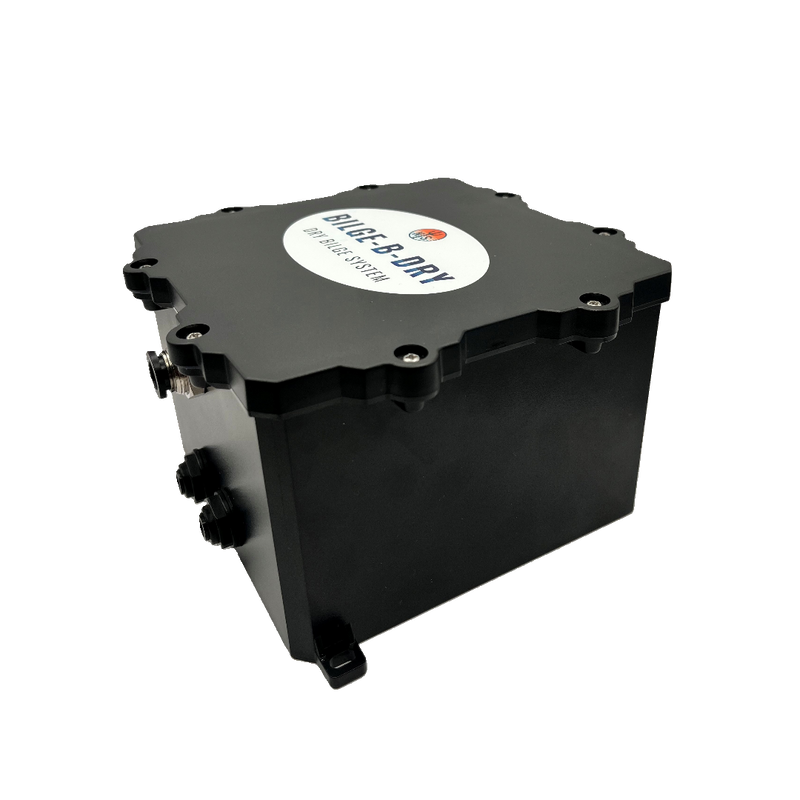

The dual‑pump design offers:

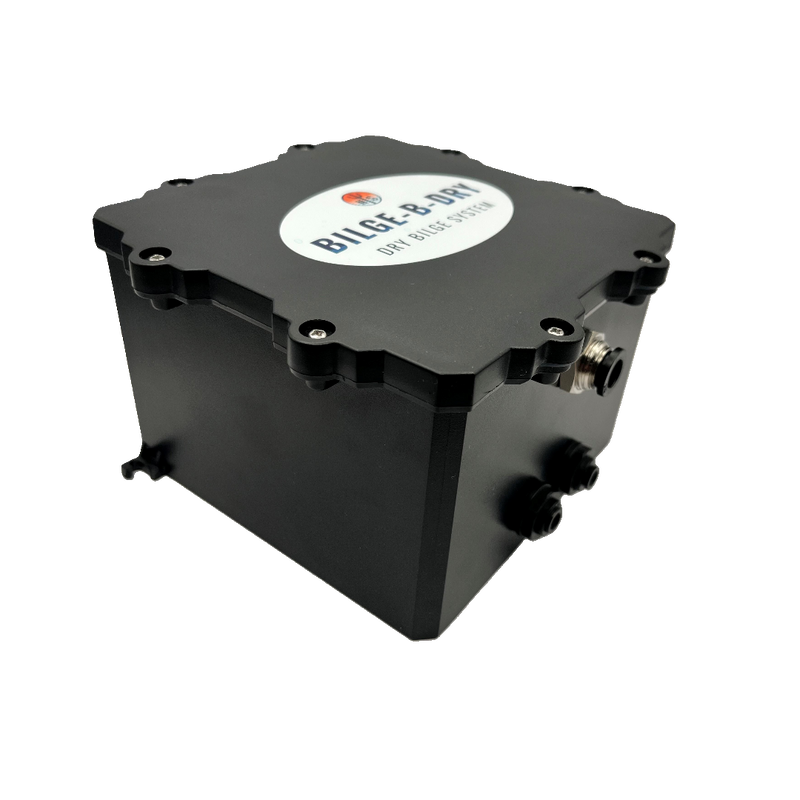

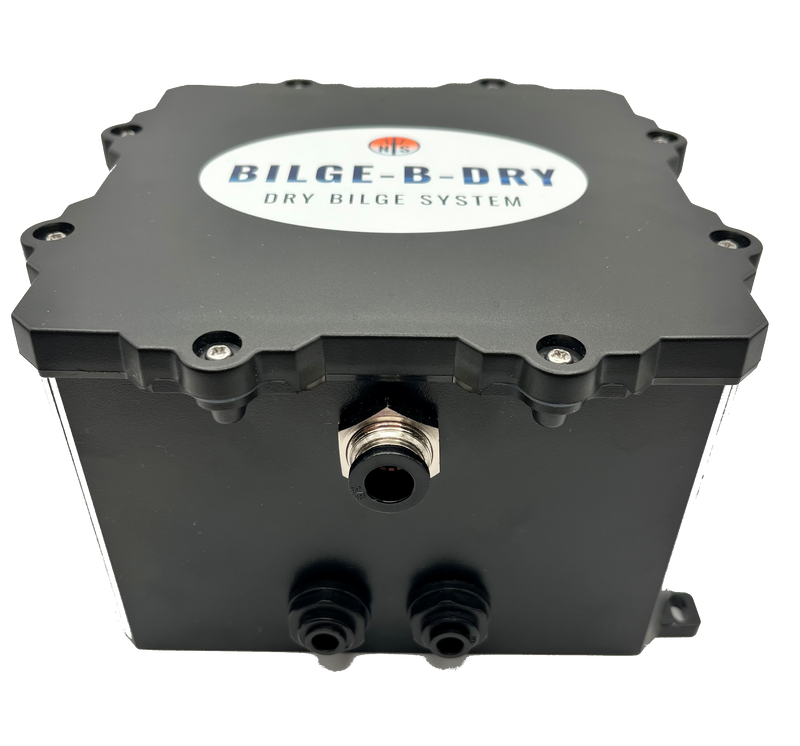

• Two diaphragm pumps inside a durable enclosure

• Compact form factor for tight‑space installations
• Any‑orientation mounting—horizontal or vertical
• Dry‑run‑safe diaphragm design

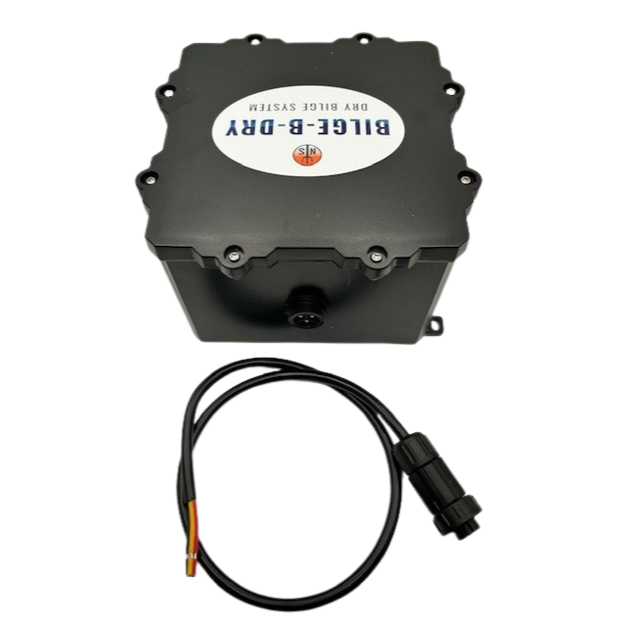

• Quick‑disconnect wiring harness with optional wired sensor connection

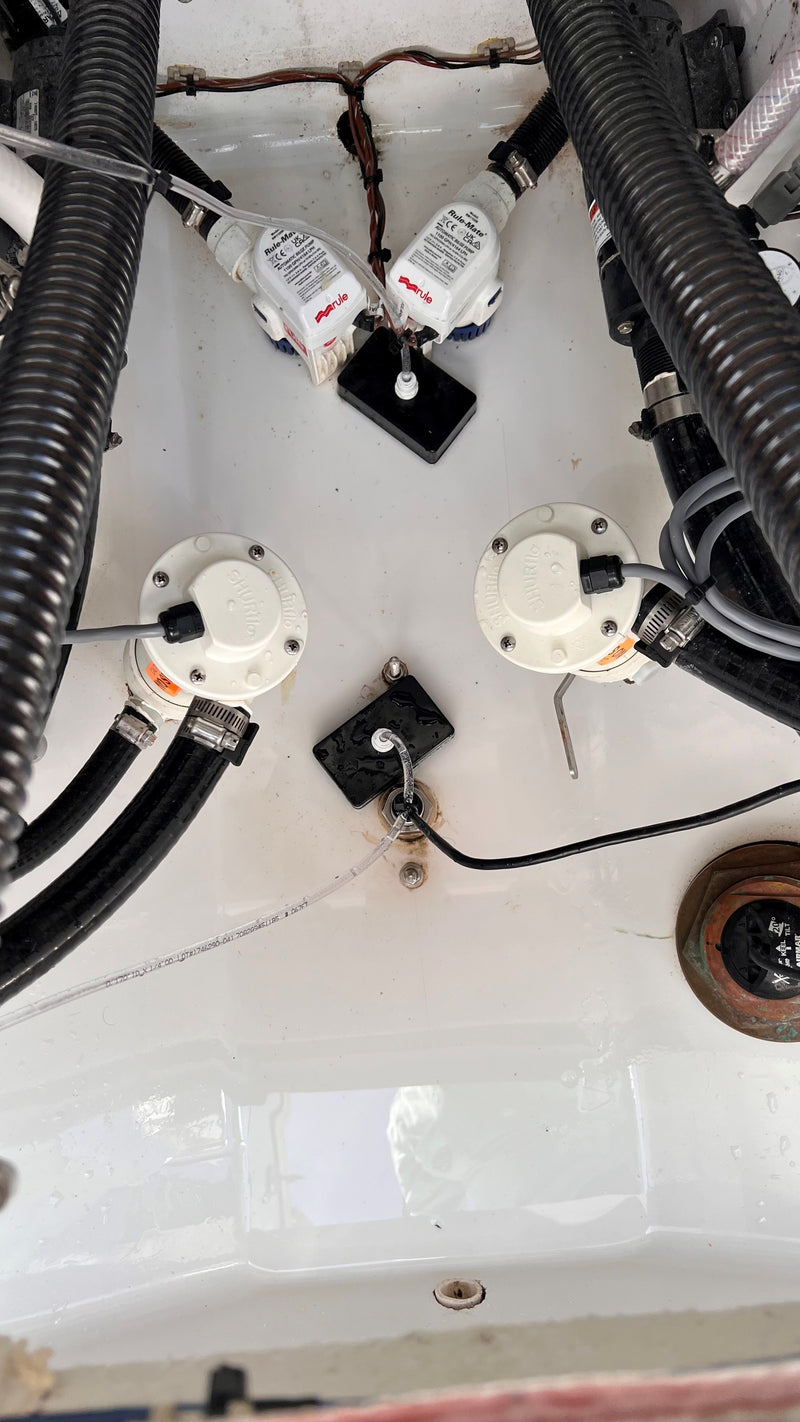

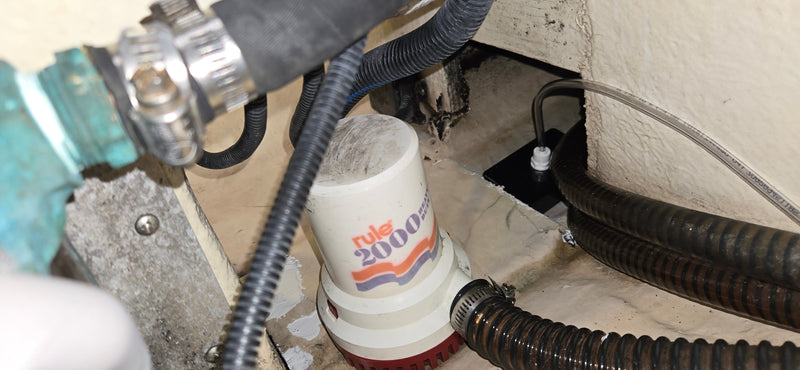

Low‑Profile Pickups Included
Each Dual Pump system includes two low‑profile bilge water pickups featuring:

• Replaceable filter material to protect the pumps from debris, heavy metals, and trace petroleum
• A unique design that reaches water in the lowest part of your bilge, A/C evaporator pans, and hard‑to‑reach compartments

(Stainless brackets sold separately.)

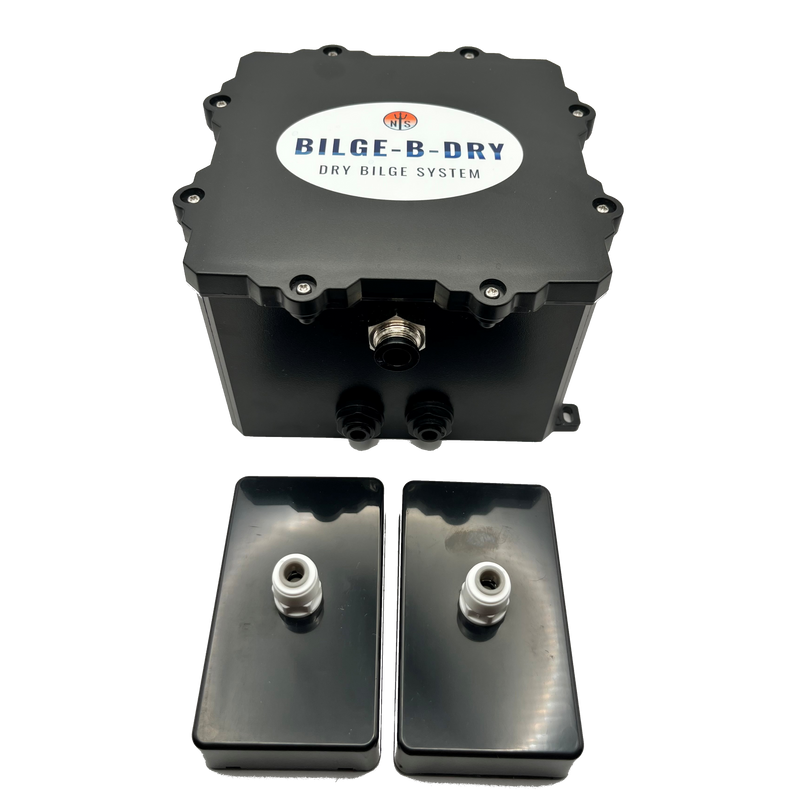

What’s Included

• Two motor/diaphragm pumps inside the enclosure
• Two pre-cut 10‑ft input tubing lengths
• One pre-cut 6‑ft output tubing length
• Two low‑profile bilge water pickups

Tubing sizes:

• Input: ¼” OD, .17” ID
• Output: 3/8” OD, ¼” ID

Before You Buy
If your bilge contains heavy debris, particulates, oil, or petroleum, contact us first so we can confirm the best setup for your environment.

Important Notes
Excessive oil, diesel, or fuel can cause diaphragm and valve swelling. If petroleum is pumped, rinse immediately with Dawn dish soap to help prevent damage.

Very deep V‑shaped bilges may not provide a suitable flat surface for the pickup. Reach out if you’re unsure.

Meets ISO 8846 standards, Section 5, Protection against ignition of surrounding flammable gases.

Power Required:

• 12 vdc (8 – 14 vdc)
• Max current: 0.73 amps (12 vdc)
• Idle Current: 0.05 amps (12 vdc)

Pump:

• Maximum flow: 0.50 GPM
• Pump head: 10 feet
• Pump suction: 5 (vertical) feet
• Diaphragm design, able to run dry for extended periods without damage
• Life expectancy >1000 hours

Control board:

• Wireless Connectivity
• Life expectancy: 100,000 cycles
• Working temperature: - 40 ~ 85 °C
• Wi-Fi & RF Grant FCC Rule Part 15C

Dimensions (in):

• Enclosure: 4.1 H x 6.8 W x 7 L
• Rectangular Pickup: 0.98 H x 2.4 W x 3.9 L 

Dimensions (mm):

• Enclosure: 105 H x 172 W x 177 L
• Rectangular Pickup: 25 H x 60 W x 100 L 

Weight

• 2.0 LB (not including tubing, pickup, or accessories)

Tubing:

• Input tubing diameter (PVC or PU) - ¼” OD .17" ID
• Output tubing diameter (PVC or PU)-3/8” OD 1/4" ID
• Use Polyvinyl chloride (PVC) or Polyurethane (PU) tubing
• Hardness Shore A 80 or higher
